This Pascal program is an intro demo from 1994. It displays text messages and graphics using VGA graphics mode. The program handles palette changes, writes text to the screen, and manages sound through devices like PC Speaker and SoundBlaster. The main loop updates the screen and handles user input to control the demo.

Description

The Phobia Welcome Intro was programmed in 1994 using Turbo Pascal, with inline assembler for the graphics routines. The idea for this intro was inspired by an Amiga demo, though the specific name of the demo has been forgotten. All graphics and programming were done by Stefan Koelle on a 486 DX50 DOS PC.

This intro utilized an early version of the X-LIB unit, specifically the TextGraf.pas, which was also developed by Stefan Koelle. The source code for the intro is available on GitHub. The primary technique used in this intro to create the illusion of movement was through color palette changes, rather than altering the pixels on the screen.

The music for the intro was borrowed from an old Amiga demo and played using a public Mod-Player. The font used in the intro was custom-created and compiled into the executable as an object, along with the music and graphics.

Phobia Website

YouTube Video of the Intro

Requirements & Compatibility

This intro was written for MS-DOS in 1994 using Turbo Pascal 7.0. It uses real-mode (16-bit) memory access and direct hardware port communication (VGA, PC Speaker, SoundBlaster), so it requires either:

A real DOS machine with VGA-compatible graphics
An emulator such as DOSBox, DOSBox-X (recommended) or 86Box

The program will not run natively on modern Windows or Linux. A 386 or better CPU is required for the sound routines; a 486 DX50 or faster is recommended for the intended experience.

Directory Structure

File	Description
`source/PHO.PAS`	Main program source (entry point)
`source/PHO_U.PAS`	Unit linking in `PHOPIC.OBJ` & `PHOPAL.OBJ`
`source/PHO_U2.PAS`	Unit linking in `PHOFNT.OBJ`
`source/TEXTGRAF.PAS`	X-LIB TextGraf unit (Stefan Koelle)
`source/COMPILE.BAT`	Original batch file used to compile the project
`.OBJ` / `.TPU`	Pre-compiled object/unit files for external libraries
`PHO.RSC`	Resource file containing music and graphics data
`PHO.EXE`	Pre-compiled executable (ready to run)

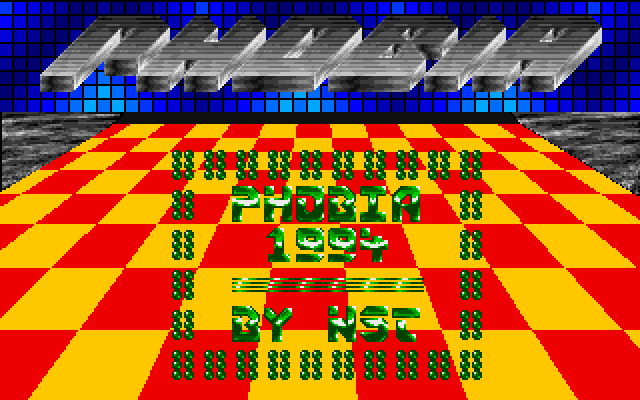

`images/screenshot.png`	Screenshot of the intro in action

Building from Source

If you wish to rebuild the executable from source:

Install Turbo Pascal 7.0 in DOSBox (or on real hardware).
Place all files from source/ in a single directory on the DOSBox drive.
Run COMPILE.BAT from within that directory.

The .OBJ and .TPU files are pre-compiled external libraries that cannot be rebuilt from the original Pascal sources. The PHO.EXE binary in the repository root is ready to run and does not require compilation.

Running the Intro

In DOSBox, mount the repository root as a drive (e.g. Z:).
Run PHO.EXE.
Select a sound device when prompted:
- F1–F2: PC Speaker (various frequencies)
- F3–F4: SoundBlaster
- F5–F6: Parallel port DAC
- F7–F8: Disney / Covox
- F9–F10: Auto-detected
- ESC: No sound
- +: Skip the intro

Credits & Sources

Coding & Graphics: Stefan Koelle (NST / Phobia) — 1994
Font: Custom-created by Stefan Koelle
Music: Borrowed from an Amiga demo, played via a public MOD-Player (MOD-Obj.OBJ). Specific composer/demo name is unknown.
X-LIB / TextGraf: Early version also developed by Stefan Koelle
Inspiration: Amiga demo scene (demo title lost to time)

Troubleshooting

Problem	Solution
No sound	Try a different device or run under DOSBox-X with a configured SoundBlaster
Palette glitches / wrong colors	Ensure emulation is in 256-color VGA mode ($13)
Keyboard input not responding	Restart DOSBox-X, ensure keyboard mapping is correct
`PHO.RSC` not found at runtime	Run the program from the repository root so the resource file is in the CWD
Compile errors	Use the pre-built `PHO.EXE`; the `.OBJ`/`.TPU` files are from TP 7.0 and may not link with other Pascal distributions

Methods in the Turbo Pascal Code

External Procedures

These procedures are linked from an external object file (MOD-obj.OBJ).

modvolume(v1, v2, v3, v4: integer)
- Adjusts the volume while playing.
moddevice(var device: integer)
- Sets the device for sound output.
modsetup(var status: integer; device, mixspeed, pro, loop: integer; var str: string)
- Sets up the MOD player with the given parameters.
modstop
- Stops the MOD player.
modinit
- Initializes the MOD player.

Internal Procedures

ch_pal
- Changes the palette colors in a cyclic manner to create visual effects.
writeline(wly: integer; wls: string)
- Writes a line of text to the screen at the specified vertical position (wly).
writeback(wly: integer; wls: string)
- Restores the background behind the text at the specified vertical position (wly).
CLI
- Disables interrupts (inline assembly).
STI
- Enables interrupts (inline assembly).

Main Program Logic

The main program initializes the MOD player, sets up the graphics mode, and displays text and visual effects in a loop until a key is pressed.

Key Features:

Graphics Mode Initialization: Sets the graphics mode to 320x200 with 256 colors.
Palette Cycling: Creates visual effects by cycling through palette colors.
Text Display: Writes and restores text on the screen.
Sound Setup: Configures and plays sound using different devices and frequencies.
User Interaction: Responds to key presses to control the program flow and sound settings.

README.md Unescape Escape

Phobia Welcome Intro
